MODEL

UPS-PT080-E30-F0
UPS-PT080-E40-F0

UPS-PT100-E30-F0
UPS-PT100-E40-F0

UPS-PT120-E30-F0
UPS-PT120-E40-G0

UPS-PT160-E30-F0
UPS-PT160-E40-G0

UPS-PT200-E30-H0
UPS-PT200-E40-H0

UPS-PT250-E40-H0

GENERAL DATA

Product Name

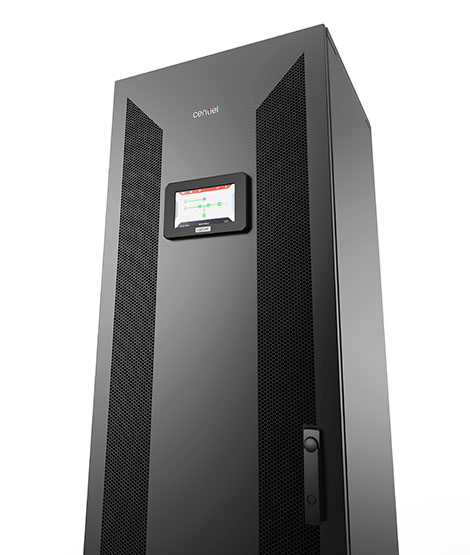

PremiumTower™ UPS

Topology/Tecnology

Online double conversion

Max Power(kVA/kW)

80

100

120

160

200

250

INPUT

MAINS

Input Wiring

3Ph+N+PE

Rated Voltage

380/400/415Vac

Voltage Range

For loads <100%(-25%,+20%) | <80% (-32,5%, +20%) | <60% (-35%, +20%)

Input Frequency

40-70 Hz

Total Harmonic Distortion

THDI <3% for linear load , THDI <5% for non-linear load

Input Power Factor

0,99

BYPASS

Input Wiring

3Ph+N+PE

Rated Voltage

380/400/415 Vac

Change over tolerance

+-30...+-10% (Voltage) (According to VFI-SS-111)

Input Frequency

50/60 ± 2/4% (selectable)

BATTERY

Type

Lead-Acid/NiCad/Lithium

Rated Voltage

360 - 480 Vdc (the number of batteries can be selected)

Blocks [LA]/Cells[NicAd]

E30 flexible from 20 to 50 | E40 flexible from 24 to 50

Charger (Amp)

64

80

96

120

160

160

OUTPUT

INVERTER

Nominal Power [kW]

80

100

120

160

200

250

Output Wiring

3Ph+N+PE

Voltage

380 / 400 / 415 Vac ± 1%

Frequency

Tracking the bypass input (Online Mode); 50/60 Hz ± 0.1% (Battery Mode)

Waveform

Sine wave (THDv < 2% for linear load; THDv < 3% for non-linear load)

Output Power Factor

1

Efficiency

96,6%

Overload Capacity

Inverter < 120% continuous; ≥ 125% for 10 min; ≥ 150% for 1 min | Bypass 135% for long term; <1000% for 100ms

Short circuit capability

3 x IN

BYPASS

Efficiency

99,4%

ENVIRONMENT

Operating Temperature

0-40°C (No power derating)

Storage Temperature

-40-70°C

Relative Humidity

0%-95% (No condensing)

Maximum Operating Altitude

1000 m. Above 1000 m, derating 1% for each additional 100 m

Audible Noise

< 71 dB

OTHERS

Dimensions (H x W x D) [mm]

F0 1,985 x 600 x 600 | G0 1,985 x 730 x 600 | H0 1,985 x 860 x 700

Colour / Protection Level

RAL 9017 (traffic black) / IP20

Certifications

EN/IEC 62040-1 | EN/IEC 62040-2 | EN/IEC 62040-3 | CE | RoHS

Communications

Standard 1 x RS232, 1x RS485, 5 x Dry output contacts, 4 x Dry input contacts, Bluetooth, SNMP slot
